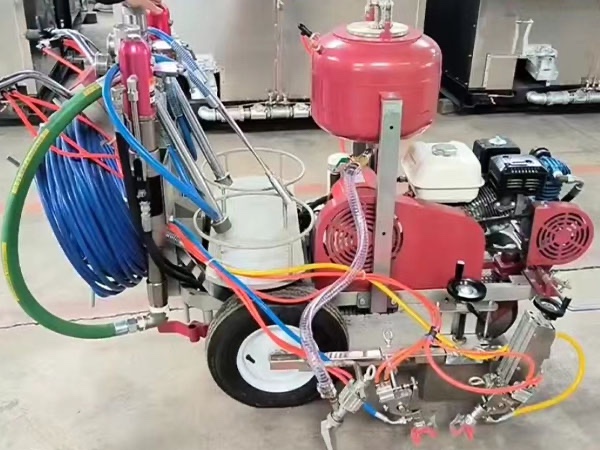

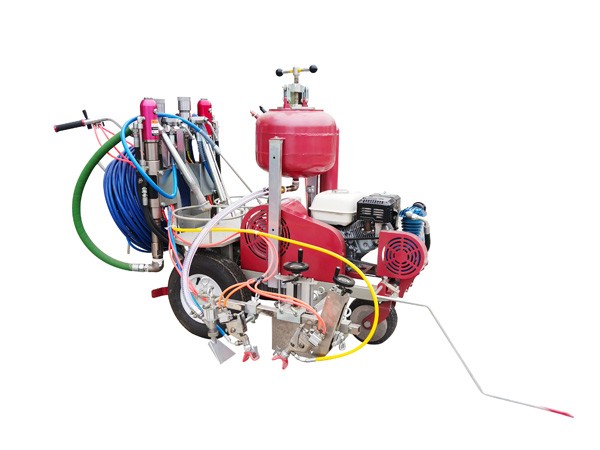

Two Component Road Spray Machine

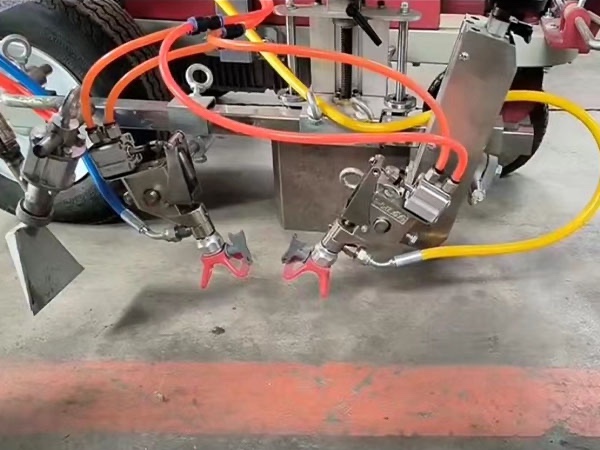

Equipped with dual pumps and dual spray guns.
Can spray two-component paint, can also spray two-color paint at the same time.

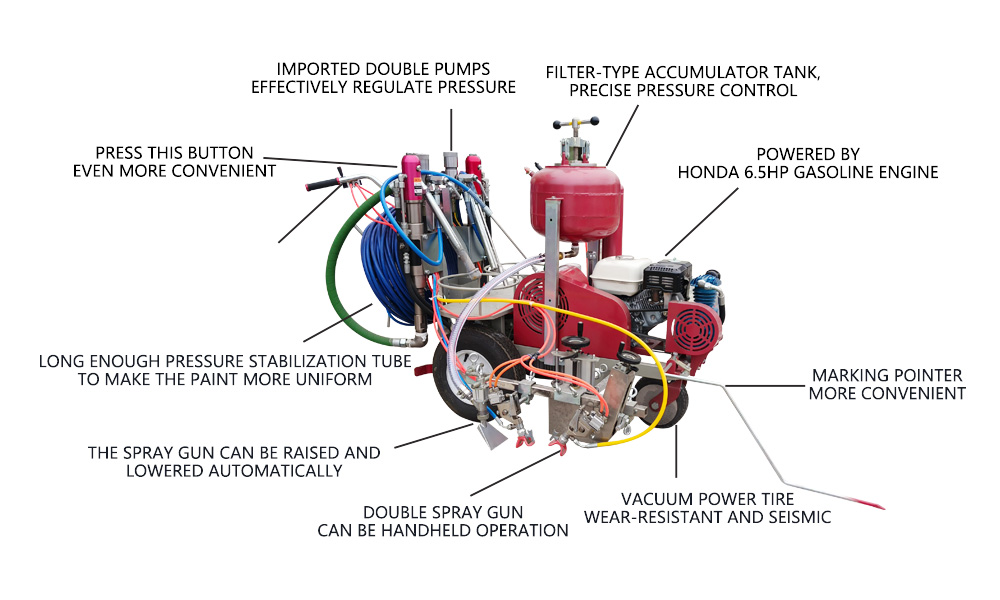

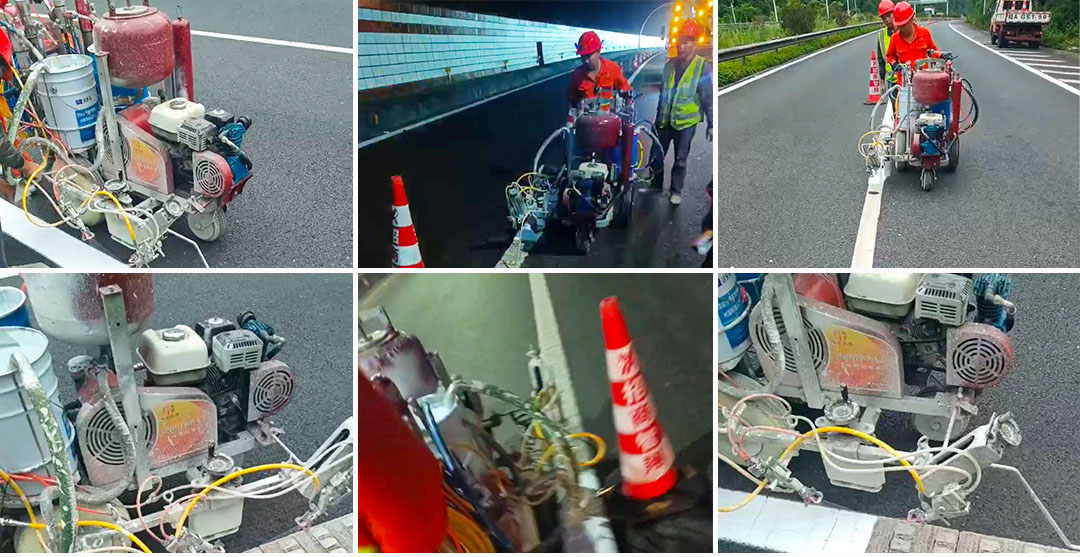

The external-mix two-component spray road marking machine is equipped with dual pumps and dual spray guns. It can spray two-component paints or two-color paints at the same time. It is very suitable for airports, municipalities or various applications that require spraying high-gloss markings and other two-color markings.We provide customized services.


Two-component spraying
MODEL	WINFAR-SJ
SIZE	180850120cm
WEIGHT	180KG
PUMPING SYSTEM	HIGH PRECISION RAM PUMP
POWER ORIGIN	HONDA 6.5HP GASOLINE ENGINE
LOCATING DEVICE	HAND-CONTROLLED HIGH-PRECISION POSITIONING
OIL TRANSFER SYSTEM	HIGH FLOW HYDRAULIC PUMP
PUMP OUTPUT	18L/MIN
THE NUMBER OF SPRAY GUNS	2
SPRINKLING WIDTH	50-500MM
CONSTANT VOLTAGE DEVICE	FILTER TYPE ENERGY STORAGE TANK
HYDRAULIC OIL TANK VOLUME	LENGTHEN THE PRESSURE REGULATOR
COOLING DEVICE	10L
SHOCK MITIGATION SYSTEM	PASSIVE HEAT DISSIPATION: TURBOFAN
