Thermoplastic spray marking machine

The spray-painted road marking system uses high-speed rotation of dual-axis gears to generate centrifugal force to spray the paint onto the road surface, which has the advantages of saving materials and efficient construction.

EMAIL


The spray-painted road marking machine uses a high-speed rotation of the dual-axis gears to generate centrifugal force to spray the paint onto the road surface, which has the advantages of saving materials and efficient construction. It is equipped with a Honda gasoline engine, which has sufficient power, easy climbing, low fuel consumption, and stable operation. It has stepless speed regulation and easy operation. It has an advanced structure and excellent configuration.




HOT MELT SPRAY MARKING MACHINE

MODELYHPJ-Z
POWER SOURCEHonda 5.5HP gasoline engine
LINE TYPE SELECTIONSpray line/oscillation line (optional)
TRAVEL SYSTEM               Automatic hydraulic continuously variable speed
BRAKING SYSTEMFive-speed dual-wheel brake
TRAVEL SPEED0-15km/H
BARREL CAPACITY120kg
BEAD BOX CAPACITY15kg
HEATING METHODLiquefied gas
              RUBBER WHEEL MATERIAL             Steel core natural rubber wheel
BUMP HEIGHT0-10mm (adjustable)
BASE THICKNESS1-3mm (adjustable)
EQUIPMENT NET WEIGHT270kg
OVERALL DIMENSIONS1300*950*1100mm
HOT MELT SPRAY BUCKET10/15/20CM (optional)

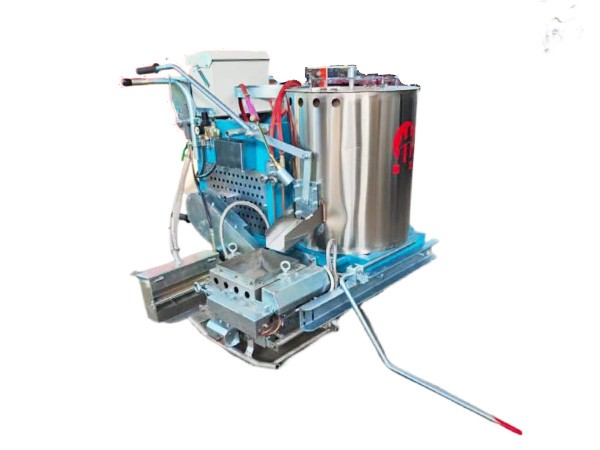

Thermoplastic Spray Marking Machine.jpg
