This device uses high-pressure water to remove markings, without dust pollution, and can achieve the recycling of waste residue from line removal, which is safe and pollution-free.

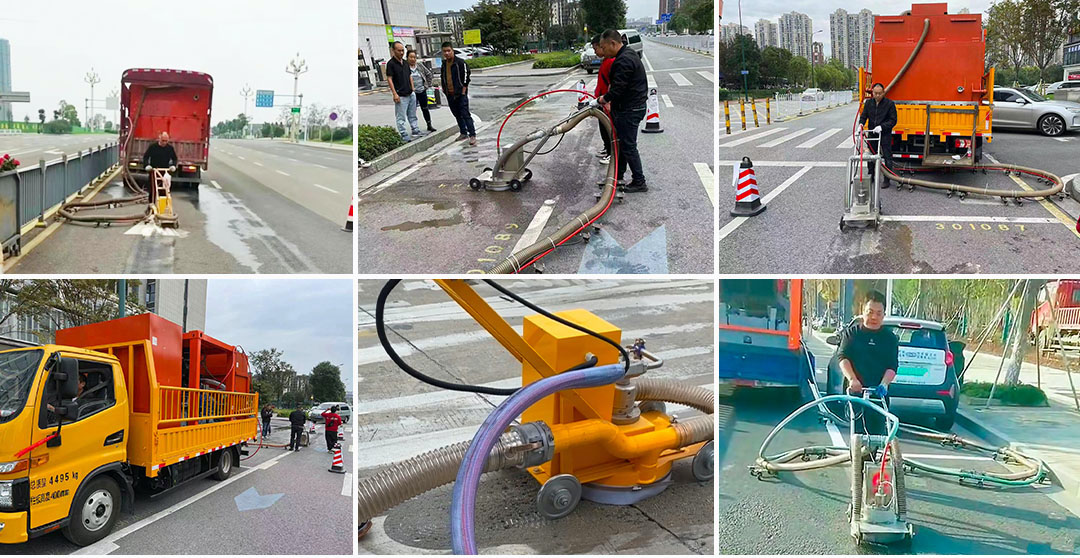

YHCX-G2000H High pressure water removal with recycling is a method of using high pressure water. Through the impact force of high pressure water to make the ground line loose, so as to achieve the purpose of removal. This method is mainly used to remove faded and damaged traffic lines to ensure traffic safety.
High pressure water removal with recycling | |

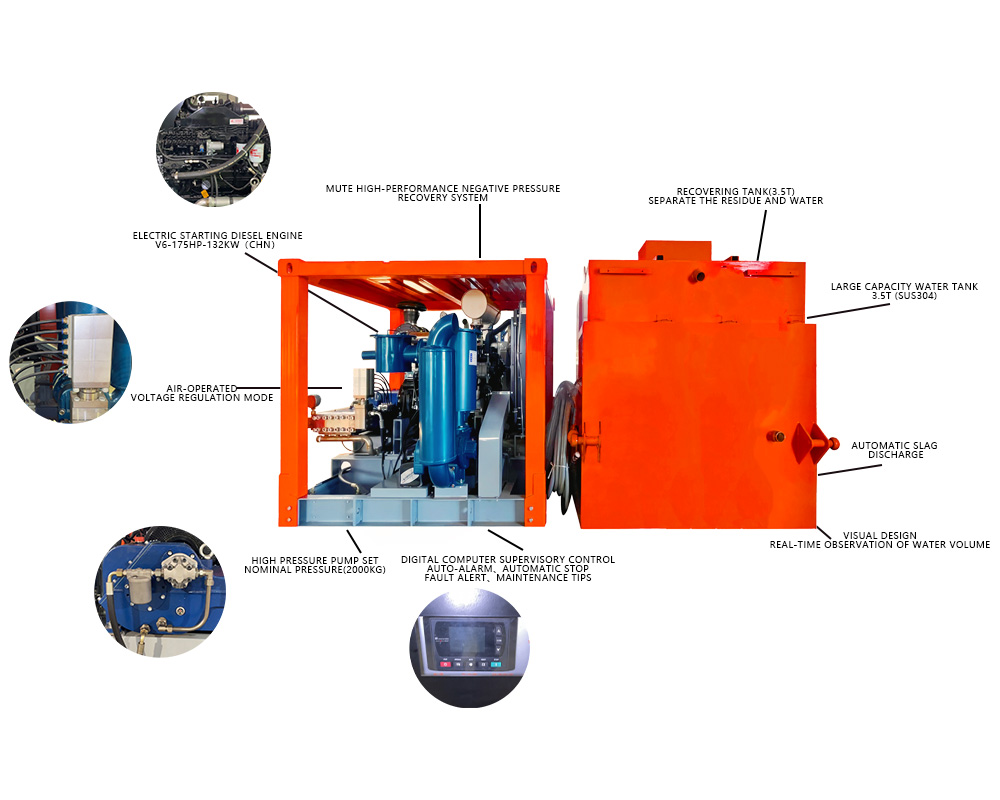

| MODEL | YHCX-G2000H |
NOMINAL PRESSURE | 2000kg |
SERVICE PRESSURE | ±1700kg（170MPA） |
INTELLIGENCE SYSTEM | digital computer supervisory control |
VOLTAGE REGULATION MODE | air-operated |
SIZE OF DEVICE | principal machine：2300*1600*1850mm |
MATERIAL OF WATER TANK | water tank：1800*1100*1900MM（3.5T） |
APPLICABLE TO VEHICLE SIZES | recovering tank：1800*1100*1900MM（3.5T） |
ELECTRIC STARTING DIESEL ENGINE | （special sizes can be customized） |
VACUUM PUMP SUCTION FOR RECOVERY TANK | SUS304 |
FUEL | suitable for trucks up to 4200*2300mm |
DIESEL FUEL TANK CAPACITY | V6-175HP-132KW（CHN） |
PRESSURE GAGE | - 40KPA |
HIGH-PRESSURE PIPE | DO |
AVERAGE DAILY OPERATING AREA | 250L |
SAFETY DEVICE | WIKA(GER) |
